Temperatur Sensor

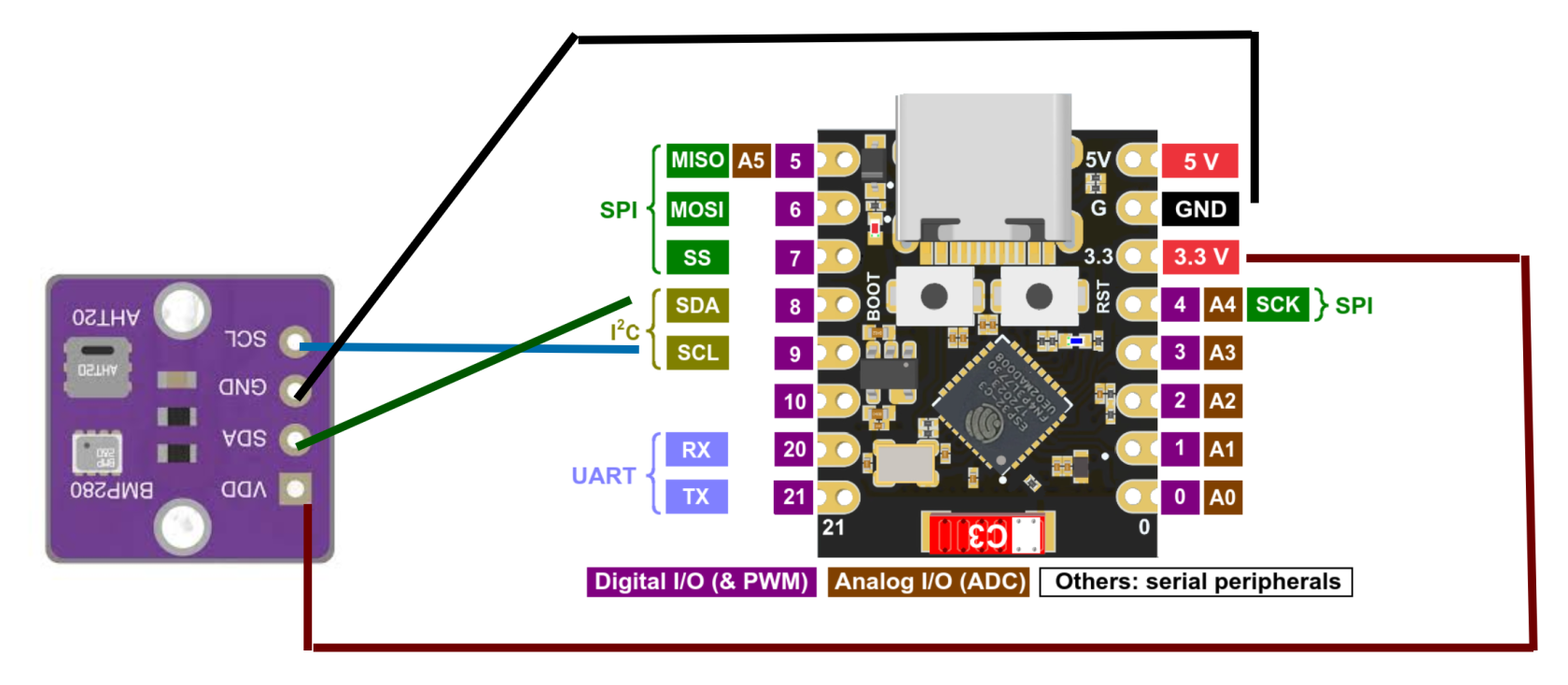

Parts:
1x BMP 280
1x Esp32 c3 mini
ESP Home Yaml:
esphome:
name: esphome-web-a68a18
friendly_name: Temperatur Sensor
min_version: 2025.11.0
name_add_mac_suffix: false
esp32:
variant: esp32c3
framework:
type: esp-idf
# Enable logging
logger:
# Enable Home Assistant API
api:
# Allow Over-The-Air updates
ota:
- platform: esphome
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
i2c:
sda: 0
scl: 1
scan: true
frequency: 100kHz
sensor:
- platform: bmp280_i2c
address: 0x77
temperature:
name: "Temperatur"
filters:
- offset: -3.0 # Zieht 3 Grad vom Messwert ab
pressure:
name: "Luftdruck"
